Description

Modelljahr: -1

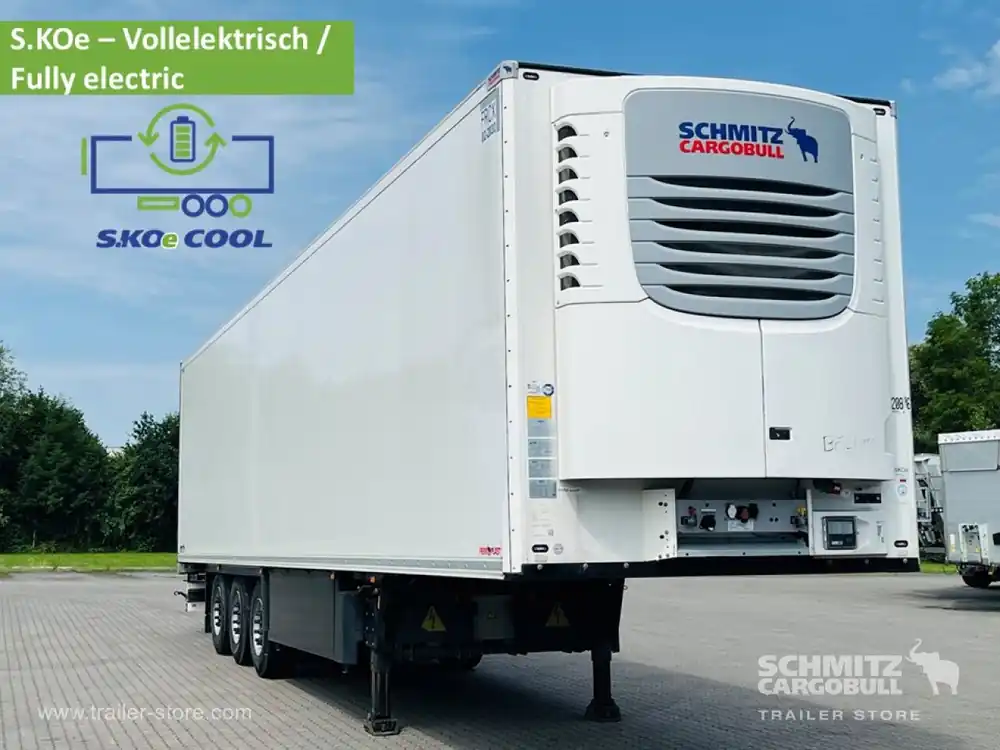

Auflieger Tiefkühler Standard Double deck

Stahlfelge

Safety

• Rear underrun
• Antilock Braking System ABS
• Telematics system

Interior

• Temperature recorder
• Double deck with beams
• Multifunctional floor

Exterior

• Air suspension
• Pallet box
• Spare wheel carrier double
• Bolted chassis
• Gantry doors
• 1×15 and 2×7 pin plug
• Antispray
• High-voltage battery pack for refrigeration units

Further equipment

• FULLY ELECTRIC cooling unit + GENERATOR Axle / VOLL ELEKTRISCHES Kühlgerät + GENERATOR ACHSEHochvolt Batteriepaket für S.CUe

Cargo securing

• Load securing rail

Brake system

• Disc brake
• Schmitz ROTOS

Floor

• Aluminum floor

Wand

• Stirnwand verstärkt

Wall

• Frontwall recess for cooling
• Wall thickness45 mm

Cooling unit

• Schmitz Cargobull S.CU ep85
• 1.946 Operating hours Diesel
• 220 Operating hours electric

area

• Length 13.403 mm, Width 2.490 mm, Height 2.650 mm
• Volume 88 m³

Tyre sizes

• 1. Achse: 385/65 R22.5 , Tread depth: 8 mm / 9 mm
• 2. Achse: 385/65 R22.5 , Tread depth: 14 mm / 14 mm
• 3. Achse: 385/65 R22.5 , Tread depth: 7 mm / 8 mm

Other dimensions and weights

• Payload: 29.678 kg
• GVW: 39.000 kg
