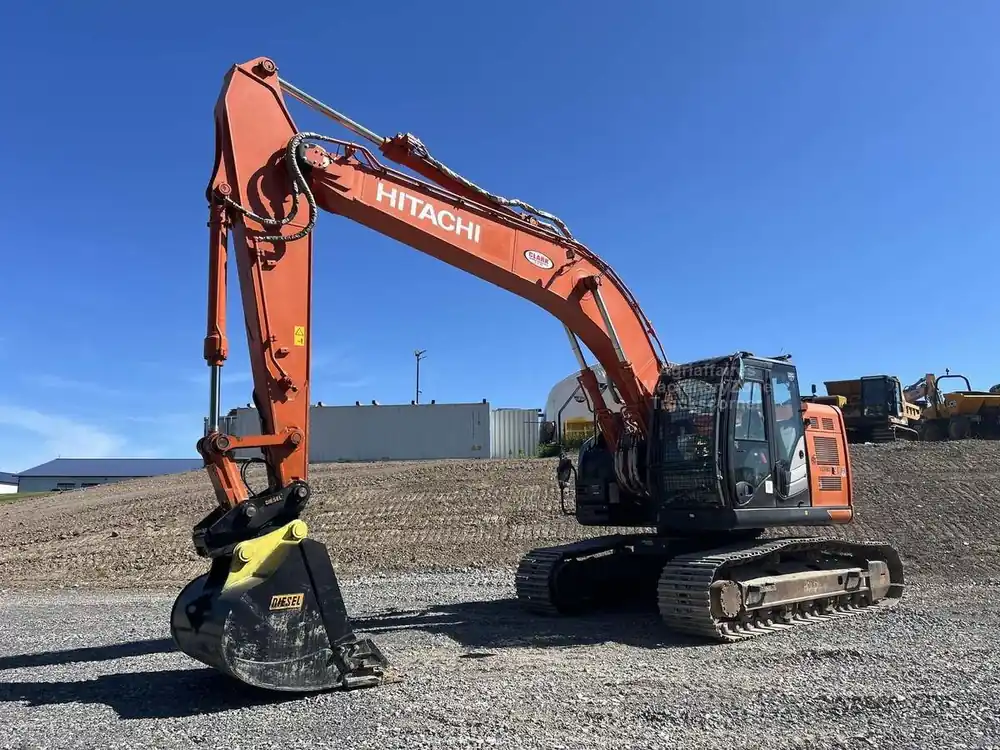

Hydraulic pin grabber coupler and factory installed auxillary hydraulics
General Specifications
Operating Weight: Approximately 51,800 to 64,150 lbs depending on the specific configuration (standard vs. additional counterweight).
o Note: A hydraulic coupler and auxiliary piping typically add 800 to 1,500 lbs to the base operating weight.
Engine: Isuzu 4HK1, 4-cycle water-cooled diesel.
Net Power: 172 HP at 2,000 rpm.
Fuel Capacity: 71.4 gallons.
Dimensions (Transport)
Transport Length: 30.41 feet.
Transport Width: 9.81 feet (with standard 24-inch/600mm shoes).
Transport Height: 9.71 feet (to top of cab/boom).
Tail Swing Radius: 5.52 feet, allowing for rotation within a single lane of traffic.
Hydraulic Performance
Main Pump Flow: 112 gallons per minute (total system flow).
Relief Valve Pressure: 4,980 psi.
Auxiliary Hydraulics: The factory-installed auxiliary system is high-flow capable, designed to run hammers, thumbs, or rotators with proportional control integrated into the joysticks.
Working Ranges
Maximum Digging Depth: 21.68 feet.
Maximum Reach at Ground Level: 33.20 feet.
Maximum Dump Height: 22.54 feet.
